      Label Dispensers > Electric Label Dispensers > LD5100

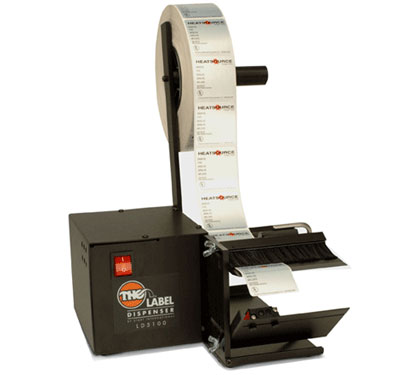

LD5100  Electric / Auto Label Dispenser
LD5100 Label Dispenser

Available Accessories:
TDstand08, LDcounter

Ideal for virtually any kind of label
from bar code to packaging

Will dispense labels and die-cut parts
Will dispense labels from .25" to 4.5" (6.4 to 114mm) in width
Will dispense labels from .50" to 6" (12.7 to 152mm) in length
Will accommodate core sizes from 1" (25mm) up (comes with 3" core holder)
Photo Sensor Accuracy and Reliability
Automatically peels paper, vinyl, acetate, polyester, foil, etc. from its liner
Automatically rewinds liner scrap for a cleaner working environment
Liner scrap is easily removed
No tools required for adjusting to different size labels
All metal construction
No maintenance required
Adjustable strip plate for hard-to-release labels
LD5100C for clear labels
High Torque Motor for large diameter label rolls
Made in the U.S.A.


*All 230V machines are CE approved.

Click here to download the LD5100 page from our catalog (.pdf file)


Model#
Liner Capacity Width
Length
Roll Capacity
Feed Speed*
Dimensions
Electrical Requirements
Weight
LD5100
.25" to 4.5" (6.35mm to 114mm)
.50" to 6" (12.7mm to 152mm)
12" (31cm)
3.3"/sec* (8cm/sec)
10.8" (L) x 10.8" (W) x 14.5" (H) 27.4cm (L) x 27.4cm (W) x 36.8cm (H)
100/120V 50/60Hz, <1 amp (220V 50/60 Hz available)
10.5lbs (4.76kg)


Get your FREE Material Evaluation! WILL THIS WORK WITH MY LABELS?
WE WILL TEST YOUR MATERIAL FOR FREE
