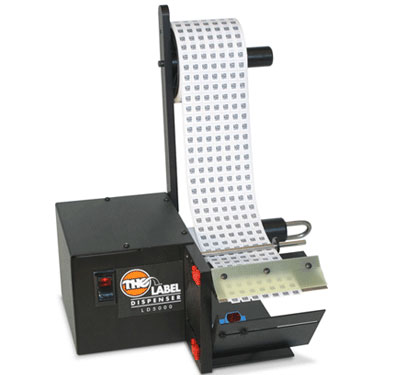

LD5000  Electric Label Dispenser
LD500 Electric Label Dispenser

Available Accessories:
TDstand08, LDcounter
Ideal for short labels and barcodes

Will dispense labels and die-cut parts
Will dispense labels from .25" to 4.5" (6.35 to 114mm) in width
Will dispense labels from .125" to 6" (3.2 to 152mm) in length
Will accommodate core sizes from 1" (25.4mm) up
Photo sensor Accuracy and Reliability
Automatically removes paper, vinyl, acetate, polyester, foil, etc. from its liner
Automatically rewinds liner scrap for a cleaner working environment
Liner scrap is easily removed
No tools required for adjusting to different size labels
All metal construction
No maintenance required
Adjustable strip plate for hard-to-release labels
LD5000C for clear labels
LD5000R for black or metallic labels
High Torque Motor for large diameter label rolls
Made in the U.S.A.


*All 230V machines are CE approved.

Click here to download the LD5000 page from our catalog (.pdf file)


Model #
Liner Capacity Width
Length
Roll Capacity
Feed Speed*
Dimensions
Electrical Requirements
Weight
LD5000
.25" to 4.5" (6.35mm to 115mm)
.125" to 6" (3.2mm to 152mm)
12" (30.5cm)
1.6"/sec (3.9cm/sec)
10.8" (L) x 10.8" (W) x 14.5" (H) 27.4cm (L) x 27.4cm (W) x 36.8cm (H)
100/120V 50/60Hz, <1amp (220V 50/60Hz available)
7.8lbs (3.53kg)
