Automatically peels labels from the liner and advances labels
New built-in 1/4” bracket for hanging capability for use with workbenches and LDHANGER16(Reel Holder Arm Extention PRT-019-01 required for LD3000 series)
Will dispense labels and die-cut parts
Photosensor accuracy and reliability
All-metal construction
Will dispense labels from .25” to 2.25” (6 to 57mm) in width
Will dispense labels from .25” to 3” (6 to 76mm) in length
Works with most clear material
Made in the U.S.A.
*All 230V machines are CE approved.
• Will accommodate core sizes of 1” (25mm) and 3” (76mm) • Automatically rewinds liner scrap for a cleaner working environment • Liner scrap is easily removed • No tools required for adjusting to different size labels • No maintenance required • The LD3000 can be daisy-chained to other LD3000s for dispensing different labels at the same time. This enables up to 8 dispensers to operate as a single dispenser. Order part no. LD3000-CABLE for each connection
Model#
Liner Capacity Width
Length
Roll Capacity
Feed Speed*
Dimensions
Electrical Requirements
Weight

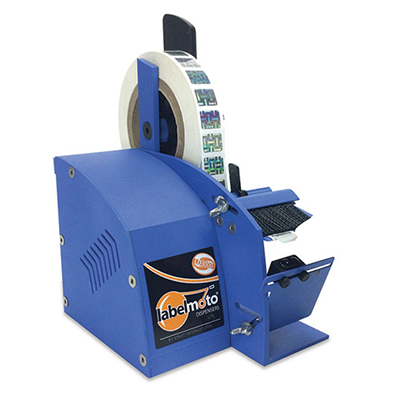

LD3000 FDA
.25" to 2.0" (6mm to 51mm)
.25" to 3" (6mm to 76mm)
7.5" (19.1cm)
2.2"/sec* (5.6cm/sec)
7.0" (L) x 6.1" (W) x 10.7" (H) 17.8cm (L) x 15.5cm (W) x 27.2cm (H)
